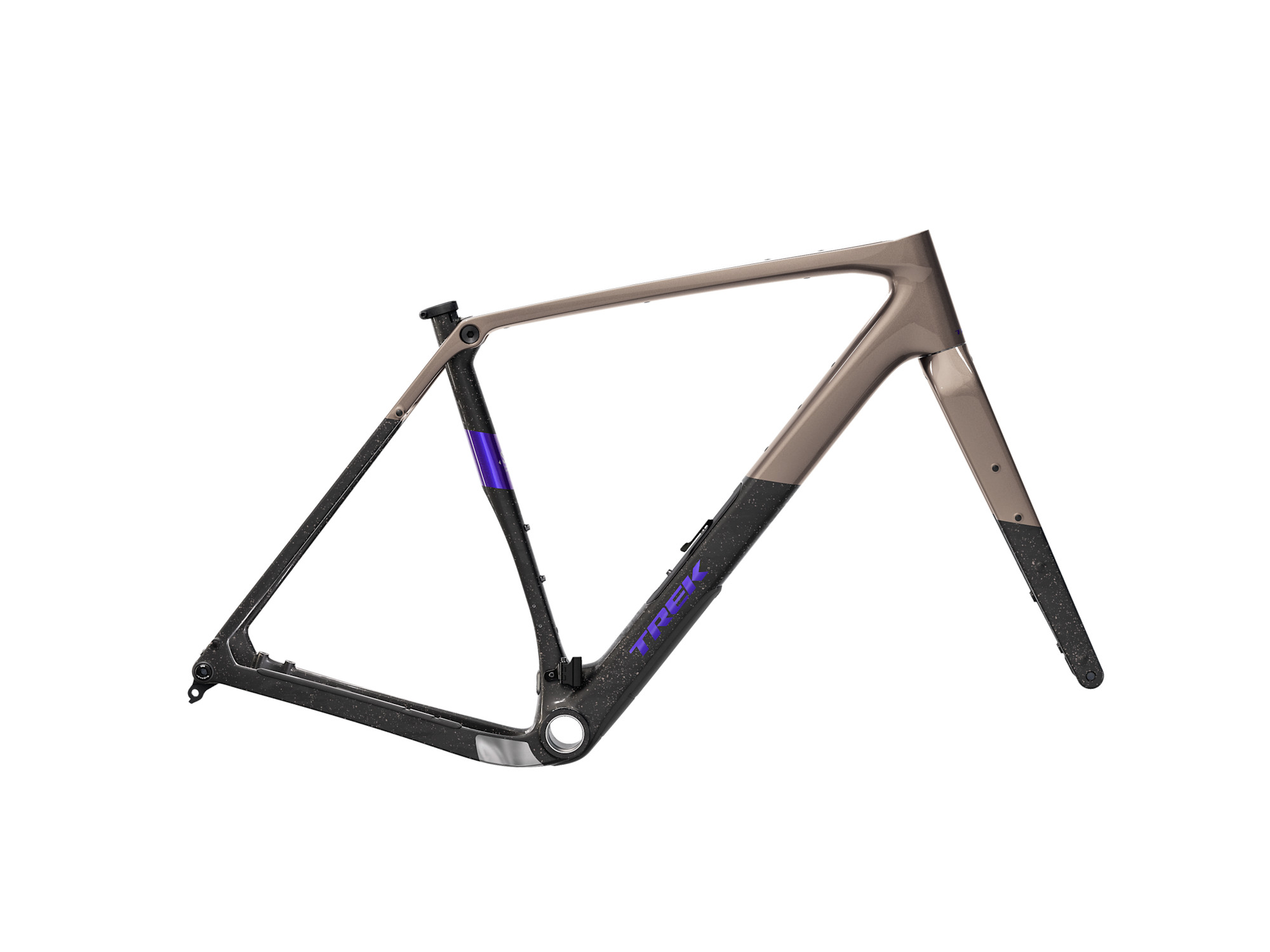

Trek Checkpoint SL 2025 geometry

Size chart for fitting. If this bike already feels right, find others with a similar riding position (size 49). Category: gravel.

Size	Stack	Reach	Head tube angle	Seat tube angle	Chainstay	Wheelbase	BB drop
49	556 mm	375 mm	71.0°	74.0°	430 mm	1031 mm	74 mm
52	576 mm	382 mm	71.4°	73.7°	430 mm	1041 mm	74 mm
54	593 mm	388 mm	71.6°	73.4°	430 mm	1051 mm	72 mm
56	611 mm	394 mm	71.8°	73.2°	430 mm	1061 mm	72 mm
58	631 mm	400 mm	72.0°	73.0°	432 mm	1073 mm	70 mm
61	653 mm	406 mm	72.2°	72.8°	432 mm	1086 mm	70 mm
L	620 mm	402 mm	72.1°	73.0°	430 mm	1052 mm	76 mm
M	579 mm	391 mm	71.6°	73.4°	430 mm	1034 mm	76 mm
ML	601 mm	397 mm	72.0°	73.2°	430 mm	1042 mm	76 mm
S	556 mm	386 mm	71.4°	73.7°	430 mm	1022 mm	76 mm
XL	640 mm	408 mm	72.4°	72.8°	430 mm	1062 mm	76 mm
XS	535 mm	380 mm	71.0°	74.0°	430 mm	1013 mm	76 mm

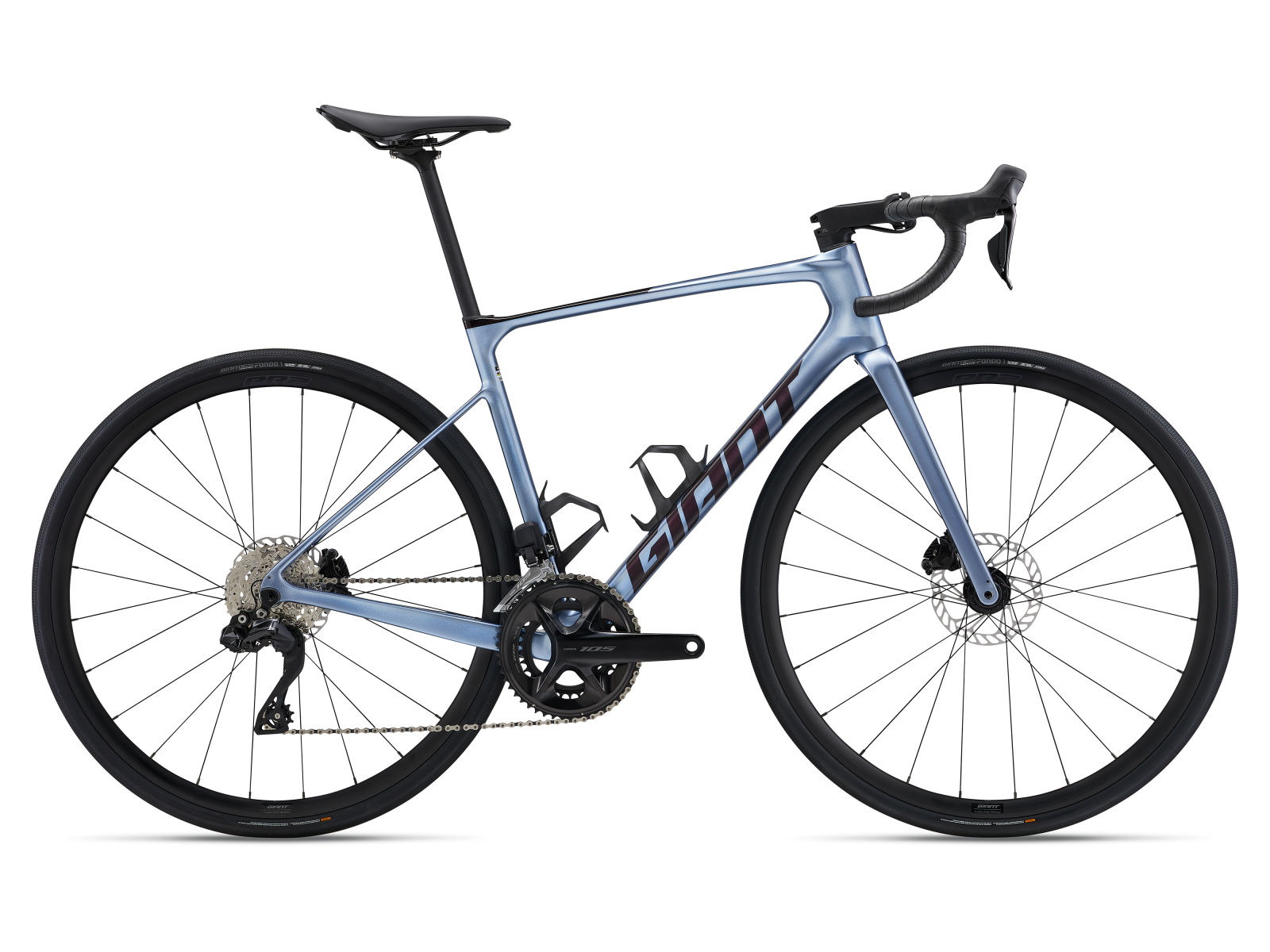

Similar bikes

Closest matches to this riding position — free, no login.

Size guidance

Stack and reach describe the frame's cockpit envelope better than traditional seat-tube sizing. If you know your preferred stack/reach from a bike that already fits, search within a few millimeters first, then check head angle and chainstay for handling feel. See the glossary for stack, reach, and HTA.
