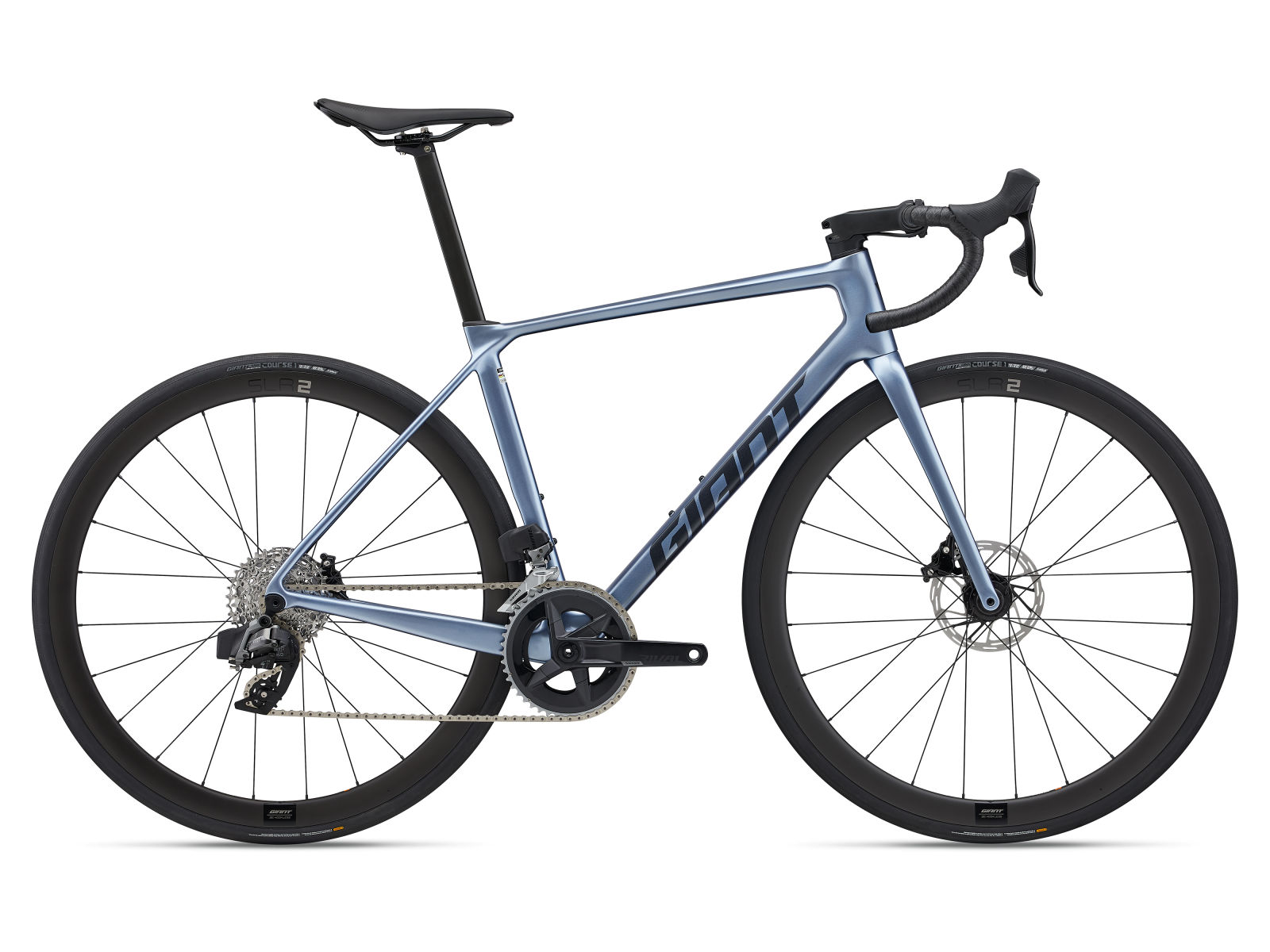

Giant TCR Advanced 2024 geometry
Size chart for fitting. If this bike already feels right, find others with a similar riding position (size L). Category: road-race.
| Size | Stack | Reach | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop |
|---|---|---|---|---|---|---|---|
| L | 581 mm | 402 mm | 73.0° | 73.0° | 405 mm | 1000 mm | 70 mm |
| M | 546 mm | 388 mm | 73.0° | 73.5° | 405 mm | 980 mm | 70 mm |
| ML | 563 mm | 393 mm | 73.0° | 73.0° | 405 mm | 986 mm | 70 mm |
| S | 528 mm | 383 mm | 72.0° | 74.0° | 405 mm | 974 mm | 70 mm |
| XL | 599 mm | 412 mm | 73.0° | 72.5° | 405 mm | 1015 mm | 70 mm |
| XS | 517 mm | 376 mm | 71.0° | 74.5° | 405 mm | 970 mm | 70 mm |
Similar bikes
Closest matches to this riding position — free, no login.
Size guidance
Stack and reach describe the frame's cockpit envelope better than traditional seat-tube sizing. If you know your preferred stack/reach from a bike that already fits, search within a few millimeters first, then check head angle and chainstay for handling feel. See the glossary for stack, reach, and HTA.
