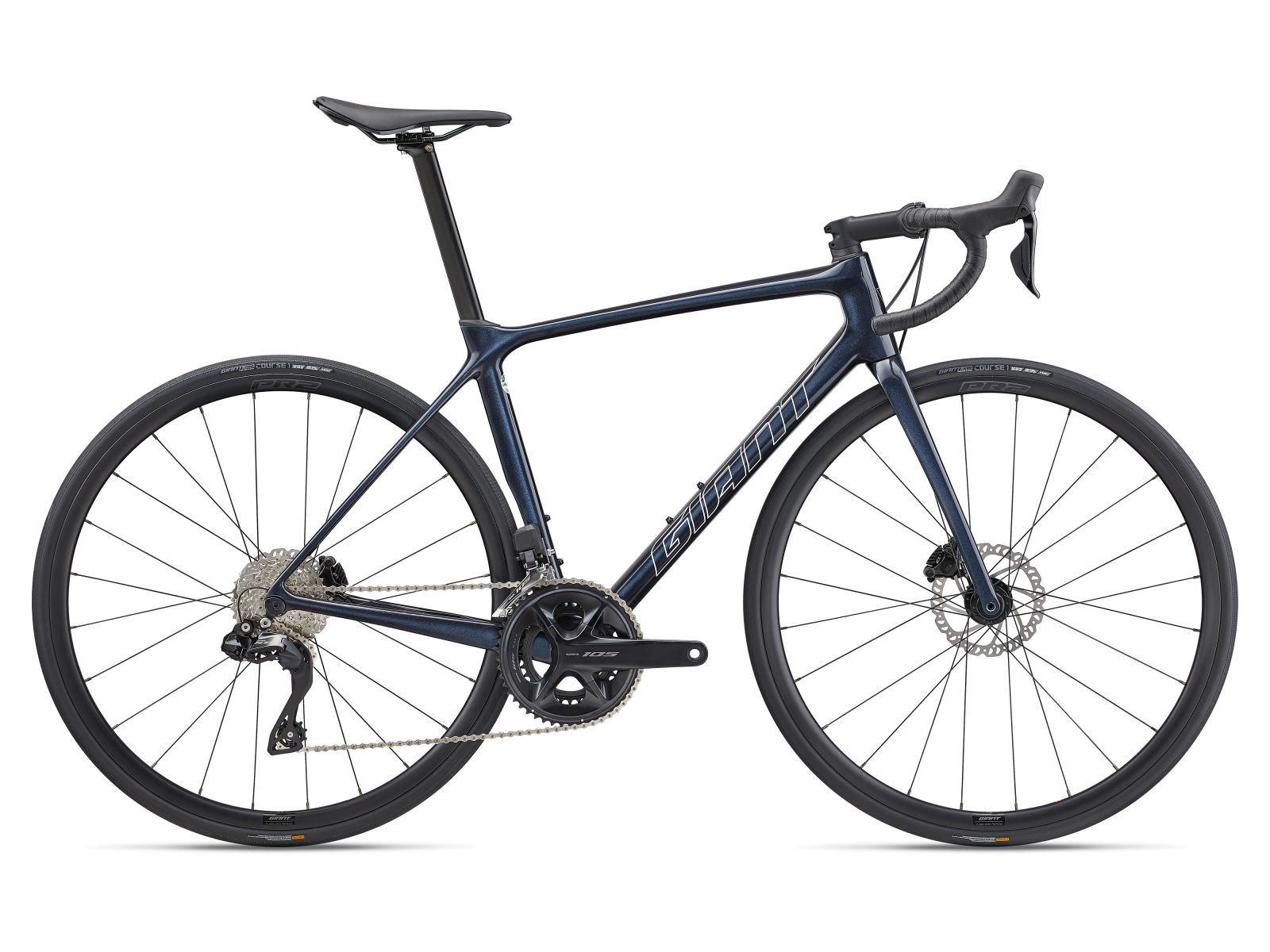

Giant TCR Advanced 2022 geometry
Size chart for fitting. If this bike already feels right, find others with a similar riding position (size L). Category: road-race.
| Size | Stack | Reach | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop |
|---|---|---|---|---|---|---|---|
| L | 580 mm | 401 mm | 73.0° | 73.0° | 405 mm | 999 mm | 70 mm |
| M | 545 mm | 387 mm | 73.0° | 73.5° | 405 mm | 979 mm | 70 mm |
| ML | 562 mm | 392 mm | 73.0° | 73.0° | 405 mm | 985 mm | 70 mm |
| S | 527 mm | 382 mm | 72.0° | 74.0° | 405 mm | 973 mm | 70 mm |
| XL | 598 mm | 411 mm | 73.0° | 72.5° | 405 mm | 1014 mm | 70 mm |
| XS | 516 mm | 375 mm | 71.0° | 74.5° | 405 mm | 969 mm | 70 mm |
Similar bikes
Closest matches to this riding position — free, no login.
Size guidance
Stack and reach describe the frame's cockpit envelope better than traditional seat-tube sizing. If you know your preferred stack/reach from a bike that already fits, search within a few millimeters first, then check head angle and chainstay for handling feel. See the glossary for stack, reach, and HTA.
