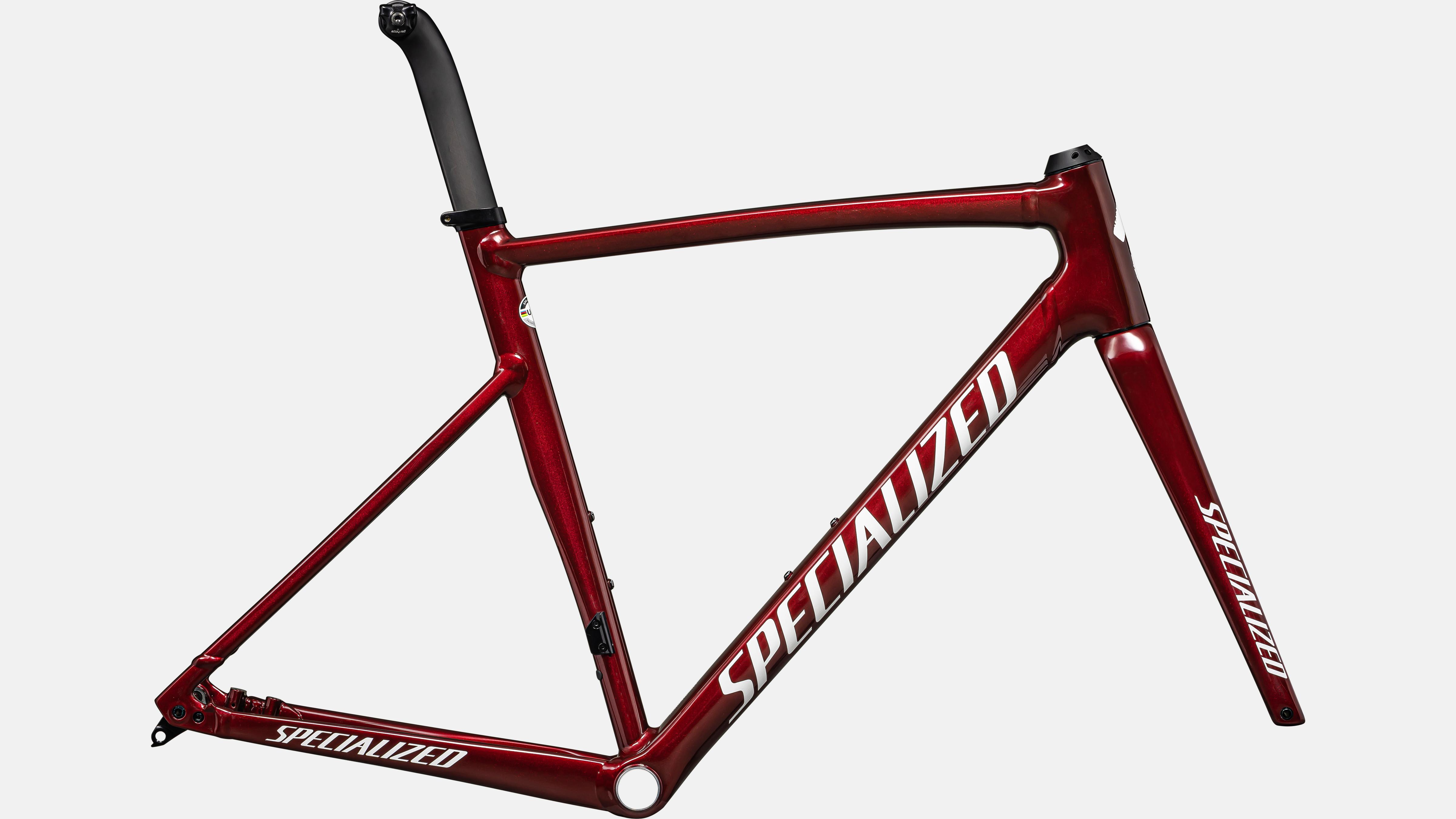

Specialized Allez Sprint 2024 geometry
Size chart for fitting. If this bike already feels right, find others with a similar riding position (size 49). Category: road-race.
| Size | Stack | Reach | Head tube angle | Seat tube angle | Chainstay | Wheelbase | BB drop |
|---|---|---|---|---|---|---|---|
| 49 | 514 mm | 375 mm | 72.3° | 74.3° | 410 mm | 978 mm | 72 mm |
| 52 | 527 mm | 380 mm | 73.0° | 74.0° | 410 mm | 983 mm | 72 mm |
| 54 | 544 mm | 384 mm | 73.0° | 73.5° | 410 mm | 991 mm | 70 mm |
| 56 | 565 mm | 391 mm | 73.5° | 73.5° | 410 mm | 999 mm | 70 mm |
| 58 | 591 mm | 400 mm | 73.5° | 73.0° | 410 mm | 1017 mm | 70 mm |
| 61 | 612 mm | 406 mm | 74.0° | 72.5° | 410 mm | 1033 mm | 70 mm |
Similar bikes
Closest matches to this riding position — free, no login.
Size guidance
Stack and reach describe the frame's cockpit envelope better than traditional seat-tube sizing. If you know your preferred stack/reach from a bike that already fits, search within a few millimeters first, then check head angle and chainstay for handling feel. See the glossary for stack, reach, and HTA.
